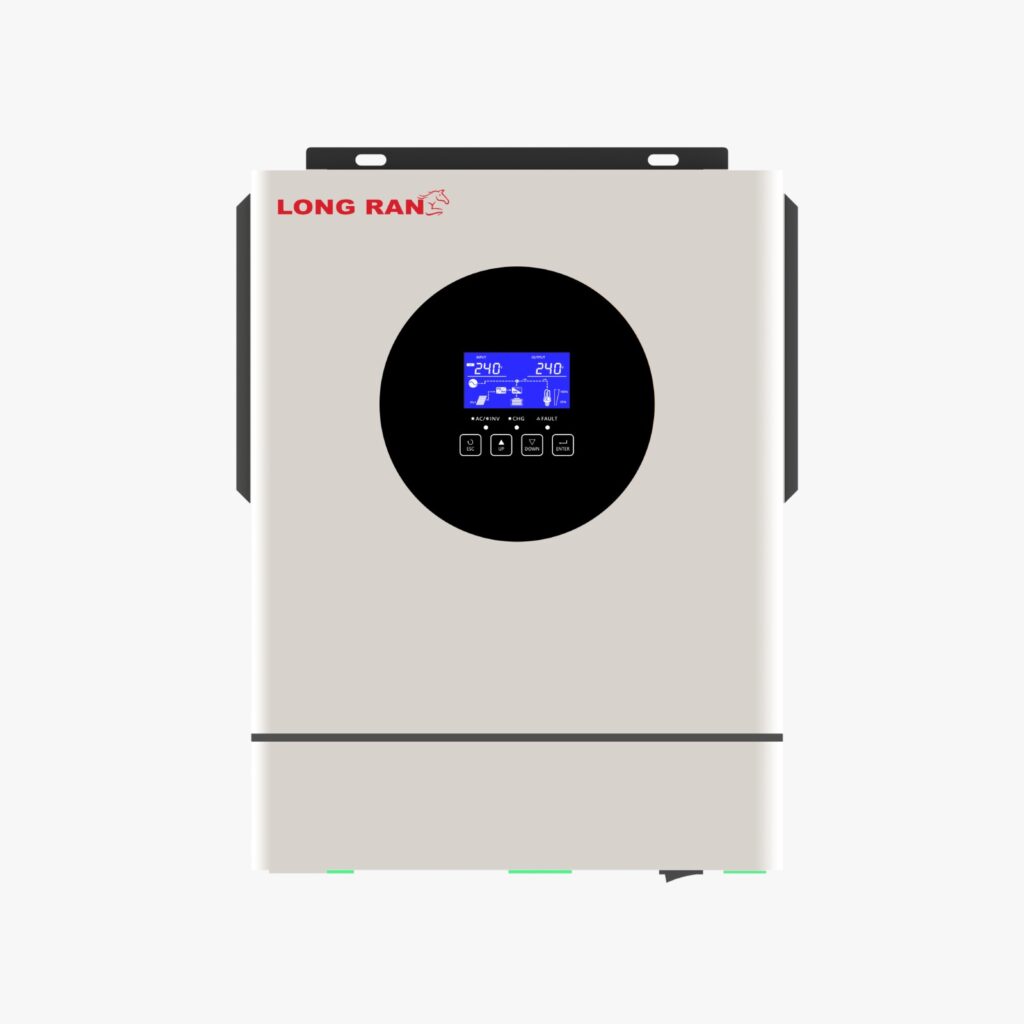

Pure Sine Wave MPPT Solar Inverter
Configurable AC / Solar Input priority via scrwensetting
Overload and short circuit protection
High PV Input Range, PV Range:60-450VDC
Work within all types of Battery
Built-in anti-dust kit
Super Saver Off Grid Hybrid Inverter
Versatile, Efficient, and Smart Solar Solution for All Applications
Super Saver Off Grid Hybrid Inverter Series Hybrid Inverter is a high-performance solar inverter designed for both off-grid and on-grid applications, offering outstanding energy efficiency and flexibility. Featuring pure sine wave MPPT technology, a high input voltage range, and advanced battery management features, it’s an ideal choice for residential and commercial solar systems.
Key Features:
MPPT Technology: Super Saver Off Grid Hybrid Inverter Series is equipped with a built-in 80/120A MPPT solar charger, ensuring optimal energy conversion by tracking the maximum power point of your solar panels with high precision, resulting in enhanced solar power generation.

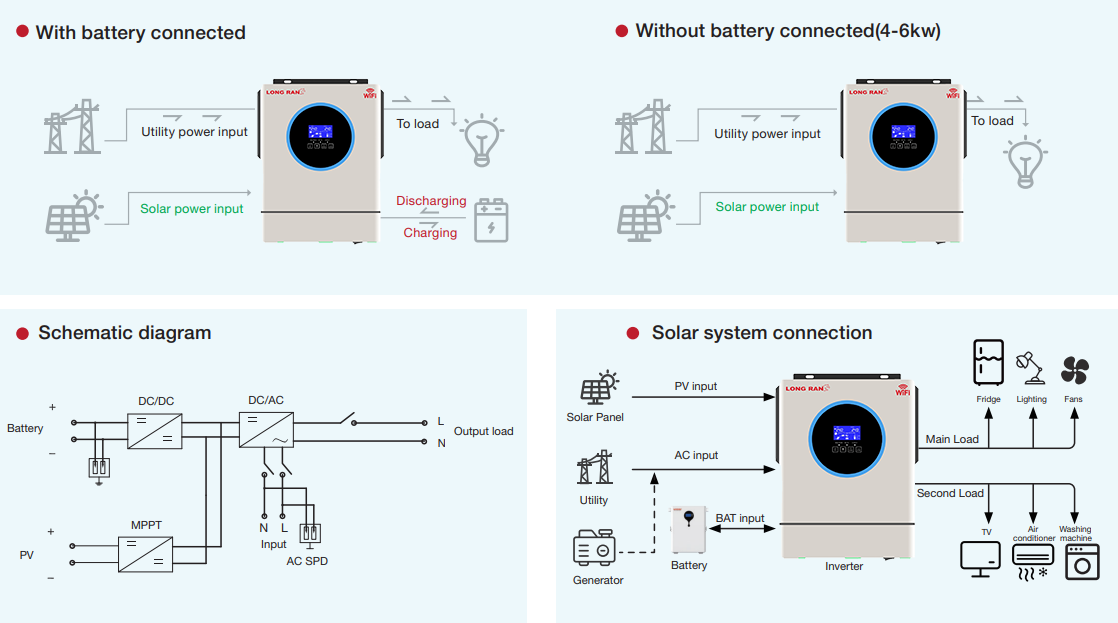

Hybrid Off-Grid Compatibility: This inverter is suitable for both off-grid applications, providing flexibility to suit various energy requirements. It seamlessly integrates with your solar system, whether connected to the grid or operating independently.
Battery Management: The inverter includes a battery equalization function to extend the life cycle of your batteries, enhancing the longevity and performance of your energy storage system. It also offers reserved communication ports (RS485, CAN) for integration with Battery Management Systems (BMS), ensuring optimal battery management.
Easy Access & Smart Load Management: Super Saver Off Grid Hybrid Inverter Series features a high PV input voltage range for greater flexibility and compatibility with various solar panels. With two outputs for smart load management (4/6KW optional), you can control your energy usage and optimize power distribution across different loads.
Super Saver Off Grid Hybrid Inverter Series Hybrid Inverter is designed to deliver efficient, flexible, and reliable solar energy solutions. Whether you need an off-grid system, this inverter provides optimal performance, smart load management, and enhanced battery protection for long-lasting energy solutions.
Super Saver Off Grid Hybrid Inverter
| Technical Specification | 2100VA/1600W | 4000VA/3200W | 5000VA/4000W | 7500VA/6000W |
|---|---|---|---|---|
| AC INPUT | ||||
| AC Voltage | 230VAC | |||
| Voltage Range | 170-280VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | |||
| Frequency Range | 50/60Hz (Auto sensing) | |||
| AC OUTPUT | ||||
| Surge Power | 3200VA | 6400VA | 8000VA | 12000VA |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% | |||
| Rated frequency | 50/60Hz | |||
| Efficiency (Peak) | 98% | |||
| Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) | |||
| BATTERY | ||||
| Battery Voltage | 12VDC | 24VDC | 48VDC | |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |
| Overcharge Protection | 16VDC | 33VDC | 63VDC | |
| Battery type | Lithium/Lead-acid | |||
| SOLAR CHARGER & AC CHARGER | ||||
| Maximum PV Array Open Voltage(V) | 500VDC | |||
| Maximum PV Array Power | 2000W | 3500W | 5000W | 7000W |
| MPPT voltage range(V) | 30-450VDC | 60-450VDC | ||
| Maximum input current | 15A | 20A | 27A | |
| MPPT tracker/strings | 1 | |||
| Maximum solar charge current | 100A | 120A | ||
| Maximum AC charge current | 80A | 100A | ||
| Maximum charge current | 100A | 120A | ||
