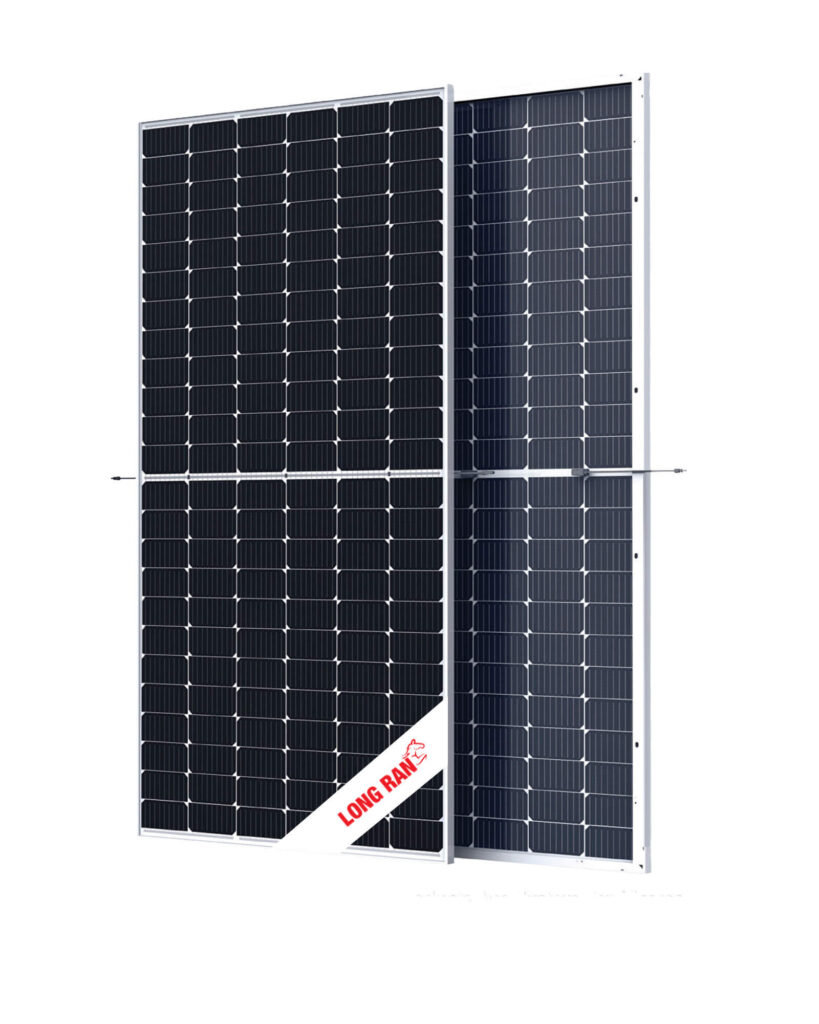

Longran’s Solar PV Modules are premium quality, known for their reliability and efficiency. Made with high-quality materials and advanced techniques, they meet the highest standards in solar energy.
| Cell Type | Mono 166*83mm | ||
| Dimension (L*W*T) | 1570*710*35mm | ||
| Weight | 11kg | ||
| Packing | Carton or Pallet or As Per Requested | ||
| Output Cable (including connector) | 4.0mm², 300mm in Length or As Per Requested | ||
| No. of Cells | 72(4*18) | ||
| Glass | 3.2mm High Transmission, Antireflection Coating | ||
| Junction Box | IP68, 3 Bypass Diodes | ||
| Connector | MC4 | ||
| Maximum System Voltage | 1000VDC | ||
| Operating Temperature | －40℃~+85℃ | ||
| Maximum Series Fuse Rating | 25A | ||
| Snow Load, Frontside | 5400Pa | ||
| Wind Load, Backside | 2400Pa | ||
| Nominal Operating Cell Temperature | 45℃±2℃ | ||
| Application Level | Class A | ||
| Maximum Power (Pmax/W) | 220W | ||
| Open-circuit Voltage (Voc/V) | 18.90 | ||
| Maximum Power Voltage (Vmp/V) | 36.00 | ||
| Short-circuit Current (Isc/A) | 13.62 | ||
| Maximum Power Current (Imp/A) | 11.64 | ||
| Module Efficiency (%) | 19.74 | ||
| Tolerance (%) | ±2% | ||
| Temperature Coefficient of Isc Temperature Coefficient of Voc Temperature Coefficient of Pmax |
0.05%/℃ -0.31%/℃ -0.35%/℃ |
||
| Standard Test Environment (STC) | Irradiance 1000W/m², Cell Temperature 25℃, Spectrum AM1.5 | ||
| 10-year Material & Technology Warranty 25-year Linear Power Output Warranty |
